安装Kubernetes

添加阿里源（云边共用）

curl -s https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | sudo apt-key add -

cat > /etc/apt/sources.list.d/kubernetes.list <<EOF
deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main
EOF

sudo apt-get update

安装相关组件（云端）

需要在云端上安装以下的软件包：

• kubeadm：用来初始化集群的指令。
• kubelet：在集群中的每个节点上用来启动 Pod 和容器等。
• kubectl：用来与集群通信的命令行工具。

k8s和kubeedge版本对应见 kubeedge/kubeedge

# 查看软件版本
apt-cache madison kubeadm

# 安装对应版本的k8s组件 kubelet kubeadm kubectl
sudo apt-get update
sudo apt-get install -y kubelet=1.22.2-00 kubeadm=1.22.2-00 kubectl=1.22.2-00

# 锁定版本
sudo apt-mark hold kubelet kubeadm kubectl

启动集群（云端）

该步可能会出现 问题一：kube-proxy 报 iptables 问题 、 问题二：calico 和 coredns 一直处于初始化 、 问题三：metrics-server一直无法成功

重置环境（第一次安装时跳过）

swapoff -a
kubeadm reset
systemctl daemon-reload
systemctl restart docker kubelet
rm -rf $HOME/.kube/config
rm -f /etc/kubernetes/kubelet.conf    #删除k8s配置文件
rm -f /etc/kubernetes/pki/ca.crt    #删除K8S证书
rm -rf /etc/cni/net.d/  # 删除网络配置
iptables -F && iptables -t nat -F && iptables -t mangle -F && iptables -X

初始化 k8s 集群

kubeadm init --pod-network-cidr 10.244.0.0/16 \
--image-repository registry.cn-hangzhou.aliyuncs.com/google_containers

# 上一步创建成功后，会提示：主节点执行提供的代码
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

# 如果只有一个节点，需要容纳污点
kubectl taint nodes --all node-role.kubernetes.io/master node-role.kubernetes.io/master-

下载配置 calico（云端）

在整个 kubernetes 集群里，pod 分布在不同的主机上，为了实现这些 pod 的跨主机通信必须安装 CNI 网络插件，这里选择 calico 网络。

在 k8s 集群初始化后，如果不配置 calico 等相关网络插件，会发现 coredns 一直处在 pending 或 containerCreating 状态，通过 kubectl describe 会发现提示缺少网络组件。

步骤 1：在 master 上下载配置 calico 网络的 yaml

# 注意对应版本，v1.22和v3.20
wget https://docs.projectcalico.org/v3.20/manifests/calico.yaml --no-check-certificate

步骤 2：修改 calico.yaml 里的 pod 网段

# 把calico.yaml里pod所在网段改成kubeadm init时选项--pod-network-cidr所指定的网段，
 #直接用vim编辑打开此文件查找192，按如下标记进行修改：

# no effect. This should fall within `--cluster-cidr`.
# - name: CALICO_IPV4POOL_CIDR
#   value: "192.168.0.0/16"
# Disable file logging so `kubectl logs` works.
- name: CALICO_DISABLE_FILE_LOGGING
  value: "true"

# 把两个#及#后面的空格去掉，并把192.168.0.0/16改成10.244.0.0/16，如下：

# no effect. This should fall within `--cluster-cidr`.
- name: CALICO_IPV4POOL_CIDR
  value: "10.244.0.0/16"
# Disable file logging so `kubectl logs` works.
- name: CALICO_DISABLE_FILE_LOGGING
  value: "true"

步骤 3：提前下载所需要的镜像。

# 查看此文件用哪些镜像：
grep image calico.yaml

# image: calico/cni:v3.20.6
# image: calico/cni:v3.20.6
# image: calico/pod2daemon-flexvol:v3.20.6
# image: calico/node:v3.20.6
# image: calico/kube-controllers:v3.20.6

在 master 节点中下载上述镜像

# 换成自己的版本
for i in calico/cni:v3.20.6 calico/pod2daemon-flexvol:v3.20.6 calico/node:v3.20.6 calico/kube-controllers:v3.20.6 ; do docker pull $i ; done

calico 只需要在 master 上存在

步骤 4：启动 calico

# 一定要执行，不然coredns无法初始化
kubectl apply -f calico.yaml

# 检查启动状态，需要都running，除了calico可以不用
kubectl get pods -A

步骤 5：对 calico 和 kube-proxy 进行配置

Edge 节点加入时可能会自动部署 calico-node 和 kube-proxy，kube-proxy 会部署成功（但是 edgecore 的 log 会提示不应该部署 kube-proxy），calico 会初始化失败。为了避免上述情况，做如下操作：

kubectl get daemonset -n kube-system | grep -v NAME | awk '{print $1}' |xargs -n 1 kubectl patch daemonset -n kube-system --type='json' -p='[{"op":"replace","path":"/spec/template/spec/affinity","value":{"nodeAffinity":{"requireDuringSchedulingIgnoredDuringExecution":{"nodeSelectorTerms":[{"matchExpressions":[{"key":"node-role.kubernetes.io/edge","operator":"DoesNotExist"}]}]}}}}]'

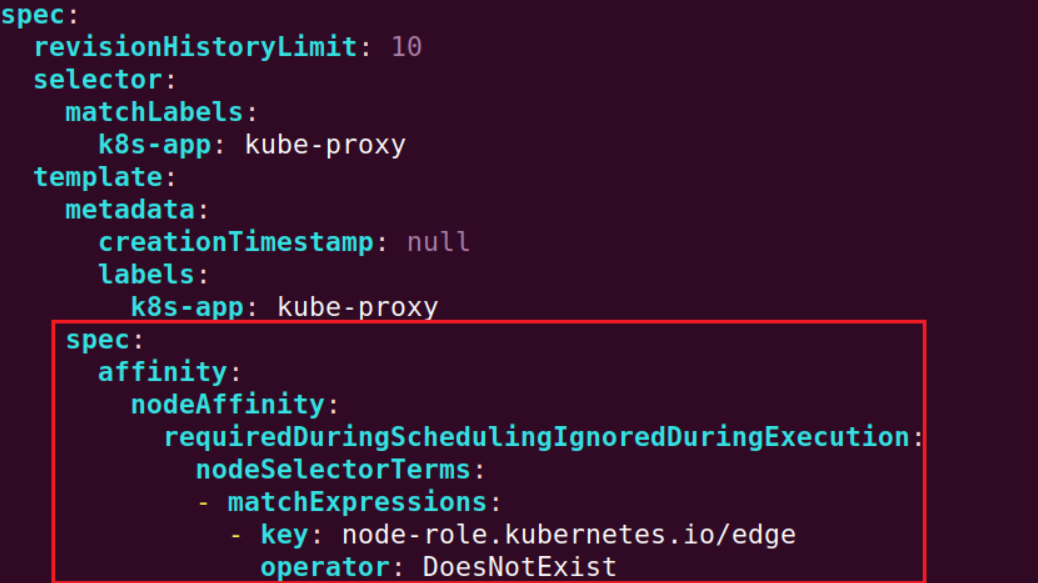

kubectl edit daemonset -n kube-system kube-proxy

# 添加以下内容
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: node-role.kubernetes.io/edge
                operator: DoesNotExist

# calico-node添加相同内容
kubectl edit daemonset -n kube-system calico-node

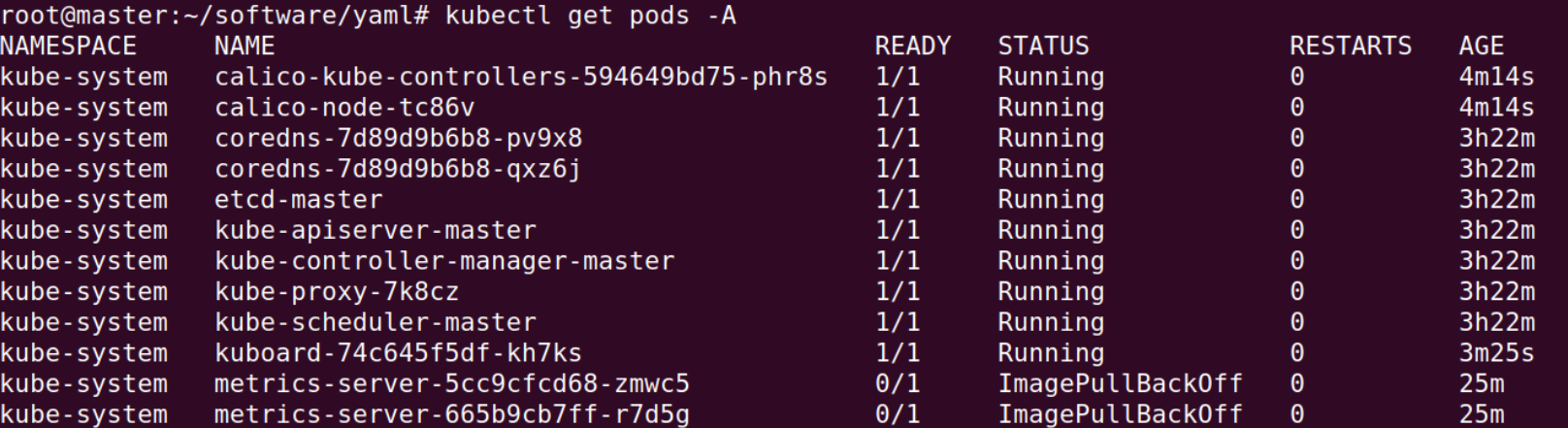

使用 kubectl get pods -A 看看calico相关的 pod 是否都在 running，通过 kubectl logs [pod_name] -n [namespace] 查看calico组件内部是否有报错。

下载配置 metrics server（云端）

安装 metrics server

metrics server 用于追踪边缘节点日志，可以安装 metrics server 来帮助监测云边分布式集群。

创建一个用于安装的YAML文件

vim metrics-server.yaml

其内容如下：

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: metrics-server
    rbac.authorization.k8s.io/aggregate-to-admin: "true"
    rbac.authorization.k8s.io/aggregate-to-edit: "true"
    rbac.authorization.k8s.io/aggregate-to-view: "true"
  name: system:aggregated-metrics-reader
rules:
- apiGroups:
  - metrics.k8s.io
  resources:
  - pods
  - nodes
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: metrics-server
  name: system:metrics-server
rules:
- apiGroups:
  - ""
  resources:
  - nodes/metrics
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - pods
  - nodes
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server-auth-reader
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server:system:auth-delegator
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:auth-delegator
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: system:metrics-server
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:metrics-server
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: v1
kind: Service
metadata:
  labels:
    k8s-app: metrics-server
    service.edgemesh.kubeedge.io/service-proxy-name: "ignore"
  name: metrics-server
  namespace: kube-system
spec:
  ports:
  - appProtocol: https
    name: https
    port: 443
    protocol: TCP
    targetPort: https
  selector:
    k8s-app: metrics-server
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
spec:
  selector:
    matchLabels:
      k8s-app: metrics-server
  strategy:
    rollingUpdate:
      maxUnavailable: 0
  template:
    metadata:
      labels:
        k8s-app: metrics-server
    spec:
      hostNetwork: true
      dnsPolicy: ClusterFirstWithHostNet
      nodeName: cloud.kubeedge
      containers:

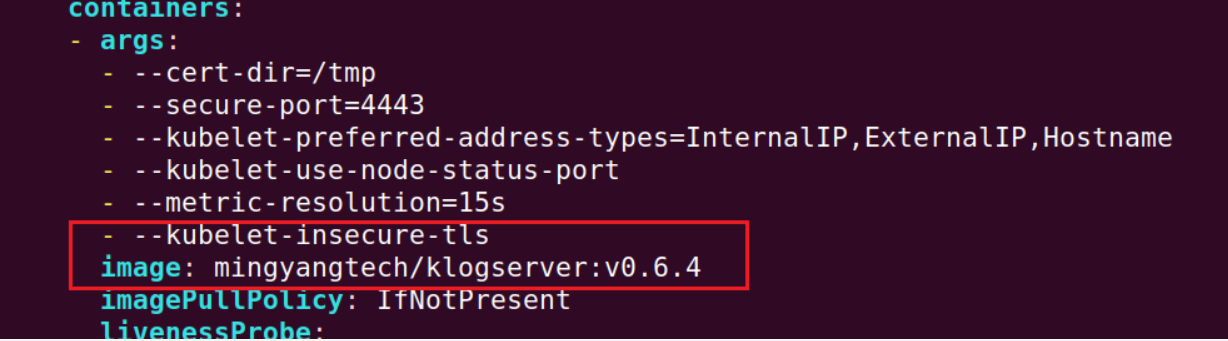

      - args:
        - --cert-dir=/tmp
        - --secure-port=4443
        - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
        - --kubelet-use-node-status-port
        - --metric-resolution=15s
        - --kubelet-insecure-tls
        image: dayuhub/metrics-server:v0.6.4
        imagePullPolicy: IfNotPresent
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /livez
            port: https
            scheme: HTTPS
          periodSeconds: 10
        name: metrics-server
        ports:
        - containerPort: 4443
          name: https
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /readyz
            port: https
            scheme: HTTPS
          initialDelaySeconds: 20
          periodSeconds: 10
        resources:
          requests:
            cpu: 100m
            memory: 200Mi
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
            - ALL
          readOnlyRootFilesystem: true
          runAsNonRoot: true
          runAsUser: 1000
          seccompProfile:
            type: RuntimeDefault
        volumeMounts:
        - mountPath: /tmp
          name: tmp-dir
      nodeSelector:
        kubernetes.io/os: linux
      priorityClassName: system-cluster-critical
      serviceAccountName: metrics-server
      volumes:
      - emptyDir: {}
        name: tmp-dir
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
  labels:
    k8s-app: metrics-server
  name: v1beta1.metrics.k8s.io
spec:
  group: metrics.k8s.io
  groupPriorityMinimum: 100
  insecureSkipTLSVerify: true
  service:
    name: metrics-server
    namespace: kube-system
  version: v1beta1
  versionPriority: 100

从yaml文件安装 metrics server:

# 手动拉取镜像
docker pull dayuhub/metrics-server:v0.6.4
# 安装
kubectl apply -f metrics-server.yaml

验证metrics-service

检验是否部署成功

kubectl top nodes

卸载 metrics server

用yaml文件卸载 metrics server：

kubectl delete -f metrics-server.yaml
